The real question most readers have: will my existing hardware actually work? The honest answer depends on model size, quantization, context length, and workload. A laptop that runs a small chatbot smoothly might choke on a 70B model with a long context window.
This guide walks through the decision path: pick your target model and use case first, then evaluate VRAM or unified memory, system RAM, CPU, storage, power, cooling, software compatibility, and privacy needs.
Key Takeaways
- VRAM or unified memory is the first wall: weights and runtime data must fit before anything else
- Fit is not performance: speed, context length, and multi-user capacity are separate hardware questions
- CPU-only handles small models; GPUs or Apple Silicon matter more as size and throughput grow
- Business users should weigh security, maintenance, and data handling—not just GPU specs
How Local LLM Hardware Requirements Work
Weights, Precision, and Quantization
Every model ships with a parameter count, and that count directly drives memory use. Precision format changes the math significantly.
According to llama.cpp's quantization reference, a 7B model requires roughly:
- 4.3 GB at Q4_K_M (4.58 bits/weight)
- 8.0 GB at Q8_0 (8.50 bits/weight)
- 14 GB at F16/BF16 (16 bits/weight)
Google's Gemma 4 documentation shows the same pattern at scale: the 12B model needs 26.7 GB in BF16 but only 6.7 GB at Q4_0, including a 20% loading overhead built into their estimates.
Capacity vs. Bandwidth
These are different problems. Capacity determines whether the model fits in memory at all. Bandwidth determines how fast tokens generate once it's loaded. A card with plenty of VRAM but slow memory bandwidth will still feel sluggish during actual use.

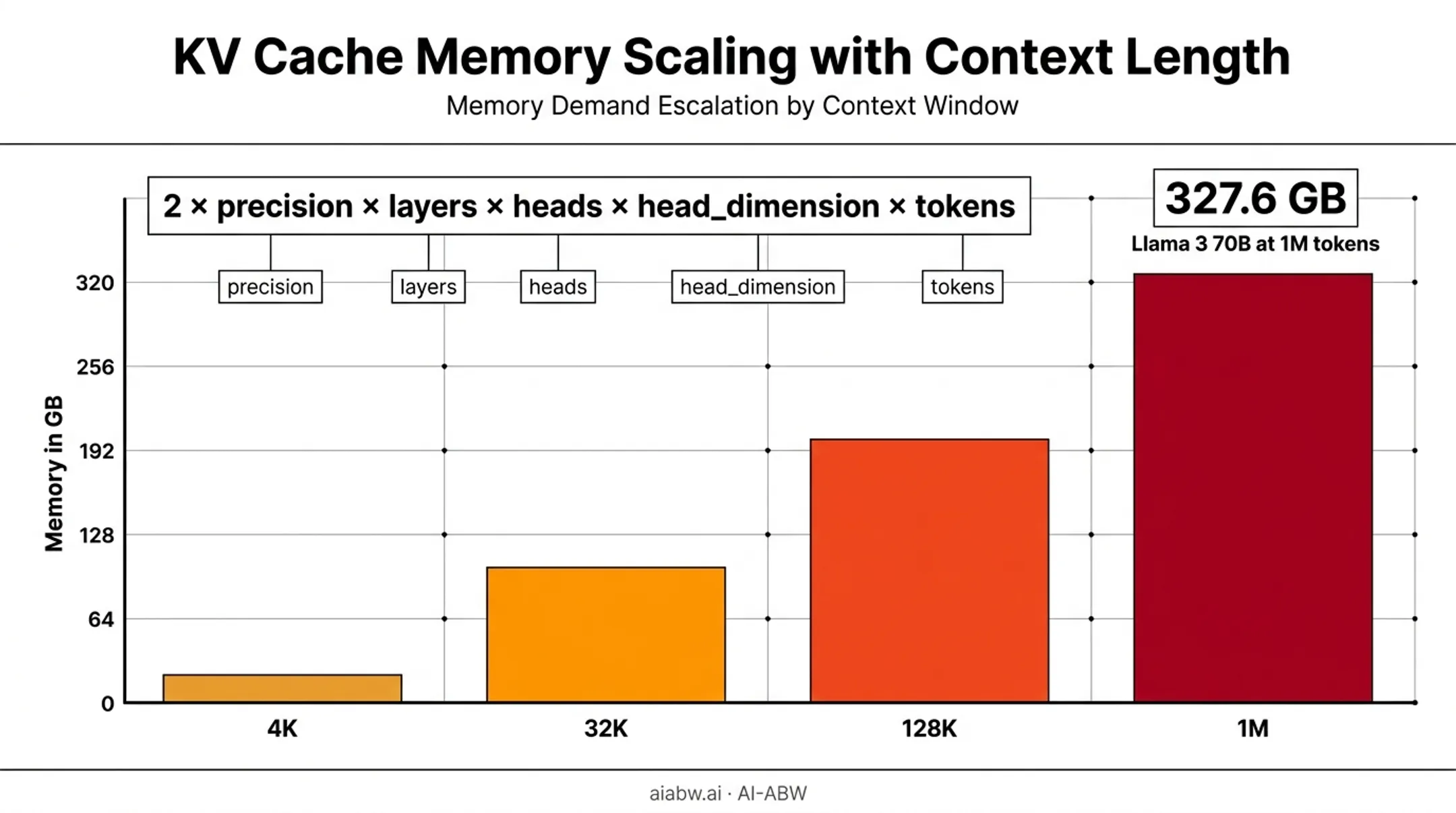

Context Windows Eat Memory Too
Longer prompts and multi-turn conversations consume additional memory through the KV cache — separate from the model weights themselves.
The formula, per NVIDIA and Hugging Face's KVPress documentation, is:
KV size = 2 × precision × layers × heads × head_dimension × tokens
That scaling gets expensive fast. A Llama 3 70B model in BF16 at a 1-million-token context needs an estimated 327.6 GB for KV cache alone — on top of the model weights. Serving frameworks like vLLM expose controls such as gpu_memory_utilization and max_num_seqs so you can cap context length and concurrency before memory blows out.
Inference vs. Fine-Tuning
Inference (generating responses) needs far less hardware than full training. Parameter-efficient fine-tuning sits in between: it adds memory for gradients, adapters, optimizer states, and training data, but still avoids full-model training cost.
Minimum, Recommended, Enterprise
Those workload differences are why hardware tiers matter. Getting a model to launch is not the same as getting usable performance:
- Minimum: the model loads and generates output, slowly
- Recommended: enough headroom for daily use at typical context lengths
- Enterprise: sustained multi-user throughput with room for concurrent sessions
Hardware Requirements by Model Size and Workload
Entry Tier: CPU-Only and Low-Memory GPUs
Integrated graphics and CPU-only laptops can run small models (2-4B parameters, heavily quantized). Expect:
- Slower token generation (seconds per response, not instant)
- Shorter usable context windows
- Noticeably reduced output quality compared to larger models
Mainstream Tier: The Everyday Sweet Spot
For everyday private use, mid-size models (7B-13B) at 4-bit or 8-bit quantization hit a practical balance. Common workloads include:
- Chat and internal Q&A
- Coding help
- Document analysis
- Private assistants
Model-weight memory is separate from the headroom your operating system and other apps need.
Gemma 4's E4B model, for example, needs just 4.5 GB at Q4_0. That fits many consumer GPUs, but you still need extra room for the OS and background processes.
Larger Models: When You Need More Muscle
Once you target 30B+ dense models or long-context workloads, you need a high-memory GPU, an Apple unified-memory workstation, or a multi-GPU setup.
Partial CPU offloading (running some layers on CPU when VRAM runs short) still works, but you pay a real speed cost.

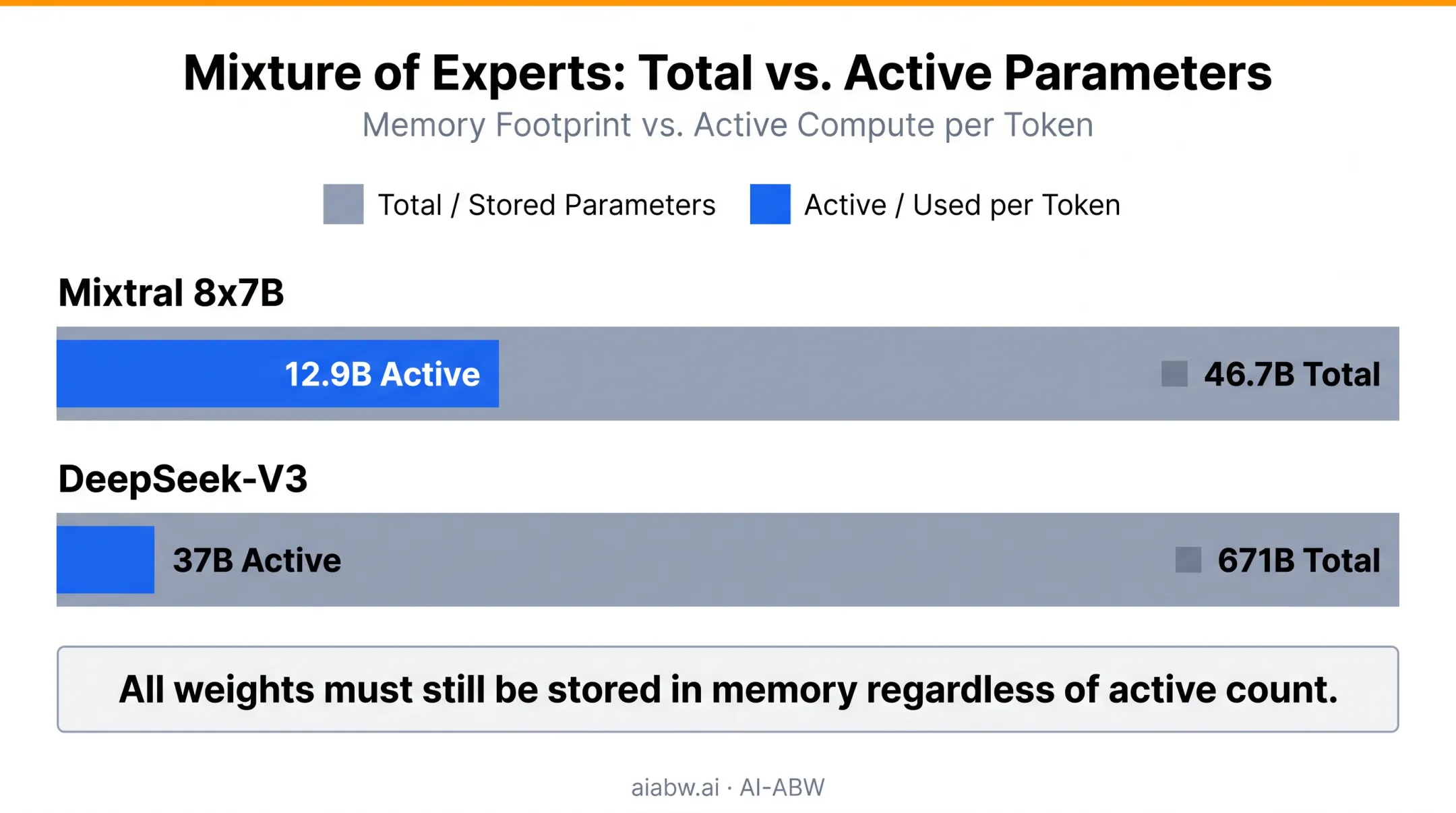

Mixture-of-Experts: Don't Trust the Headline Number
Mixture-of-experts (MoE) models are misleading if you only look at total parameters.
Mixtral 8x7B, per Mistral AI's announcement, has 46.7B total parameters but only 12.9B active per token. DeepSeek-V3 goes further: 671B total parameters, just 37B active. Even so, you still need to store all the weights in memory, even though only a fraction activates per token.
"Will it fit?" checklist:
- Quantization level chosen
- Context length target
- Number of concurrent users/conversations
- Operating system and application overhead
- Available VRAM/unified memory (not just what's installed)
Supporting Components Beyond the GPU
System RAM matters for CPU offloading, model loading, document pipelines, embeddings, and running other business software alongside the LLM. A comfortable baseline goes well beyond the minimum needed to simply load the model.
The CPU handles tokenization, prompt processing, data prep, and orchestration. llama.cpp supports AVX, AVX2, AVX512, and AMX instruction sets on x86. More cores and higher clock speed matter most for CPU-only inference or heavy preprocessing.
Storage needs add up fast:
- Multiple quantized versions of the same model
- Vector indexes for document search
- Datasets and checkpoint files
An NVMe SSD speeds up model load times noticeably over spinning disks. Watch free space as well: llama.cpp's own documentation notes that quantization requires disk space for both input and output files simultaneously, and RAM usage typically tracks close to the output file size.
Power and cooling are easy to underspec. Sustained inference workloads generate real heat over hours, not minutes, so plan airflow and case size for continuous load. For multi-GPU builds, confirm PCIe lane availability on the motherboard before you buy cards.
GPU, Platform, and Operating-System Choices

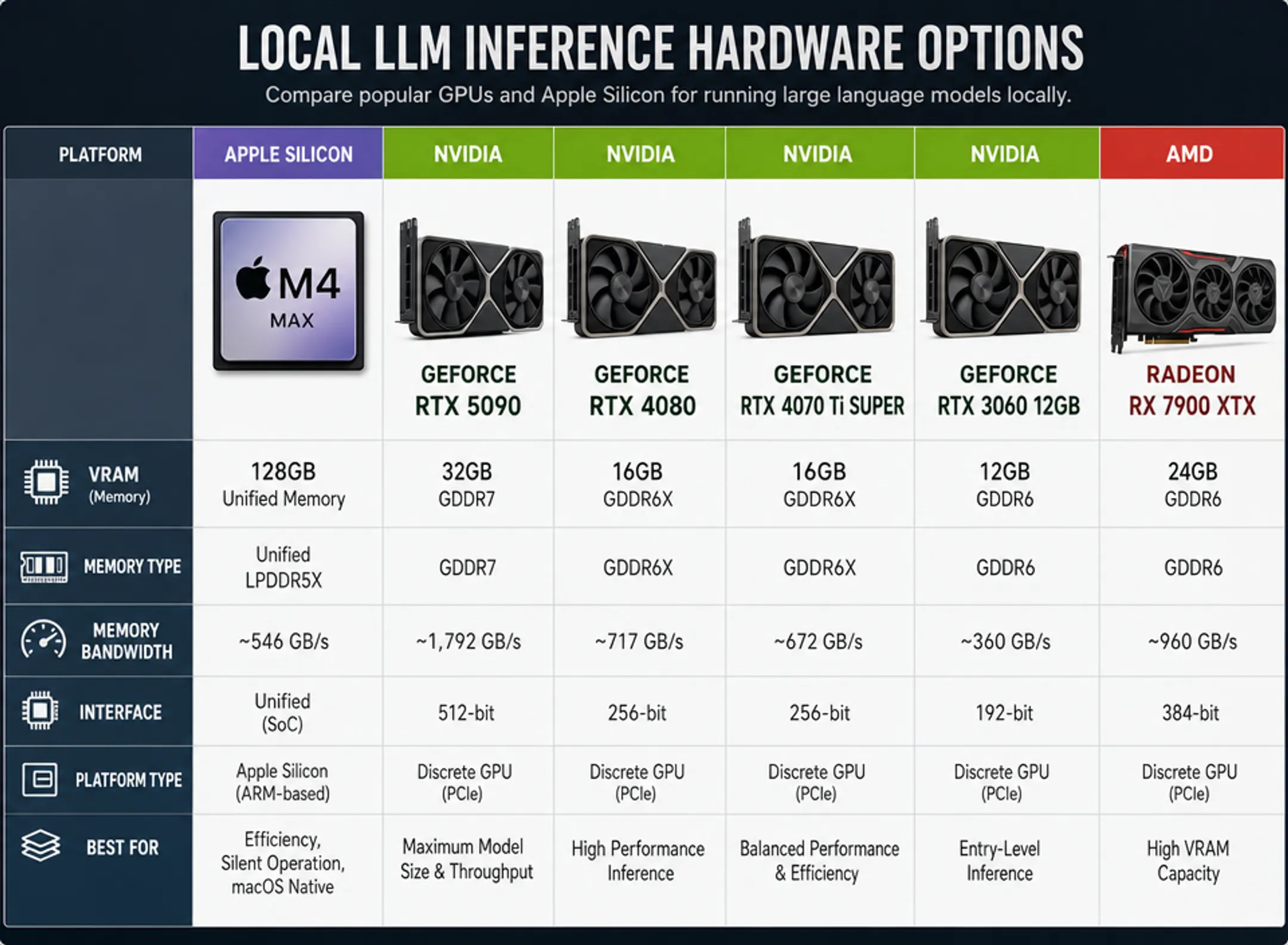

NVIDIA vs. AMD vs. Apple Silicon
| Card/Chip | Memory | Power | Notes |
|---|---|---|---|
| RTX 4090 | 24 GB GDDR6X | 450W TGP, 850W recommended PSU | CUDA ecosystem, strong tool support |
| RTX 5090 | 32 GB GDDR7 | 575W TGP, 1000W required PSU | Latest consumer flagship |
| RTX A6000 | 48 GB ECC GDDR6 | 300W max | Workstation-grade capacity |
| AMD RX 7900 XTX | 24 GB GDDR6, up to 960 GB/s | 355W typical, 800W min PSU | Strong bandwidth for the price |
| Apple M4 Max | Up to 128 GB unified, 546 GB/s | Efficient by design | No discrete VRAM ceiling |
(Specs current as of late 2025/2026; pricing and availability shift quickly — verify before buying.)
Choose NVIDIA when you need CUDA-dependent tools or fine-tuning frameworks. Pick AMD or Apple when memory capacity, cost, or power efficiency matter more than ecosystem breadth.
Operating System Compatibility
- Windows: Broad GPU support; needs AVX2 for tools like LM Studio
- Linux: Native path for vLLM and most inference engines; usually the smoothest option
- macOS: 14.0+ for LM Studio; Metal acceleration works well on Apple Silicon
Ollama, LM Studio, llama.cpp, and vLLM each carry platform quirks. vLLM has no native Windows support and recommends WSL instead.
Your GPU choice only pays off if the OS and tooling stack can use it cleanly.
Single GPU vs. Multiple GPUs
A single high-capacity GPU is the simpler default:
- No PCIe lane juggling or model-sharding setup
- Less power and cooling planning
- Fewer software configuration edge cases
Move to multi-GPU only when one card's memory cannot hold your target model. Expect communication overhead and extra configuration work when you do.
Bandwidth vs. Capacity Tradeoff
Match the memory profile to the workload:
- High bandwidth, lower capacity — Fast interactive chat and low-latency responses
- High capacity, lower bandwidth — Long-context work or batch jobs (Apple unified memory fits here)
Fit the full model first; chase token speed second.
How to Choose the Right Local LLM Setup
Match the box to the workload, then decide whether you want to own every layer of the stack. Use the framework below before you buy, and pressure-test cost and operations—not just peak tokens per second.

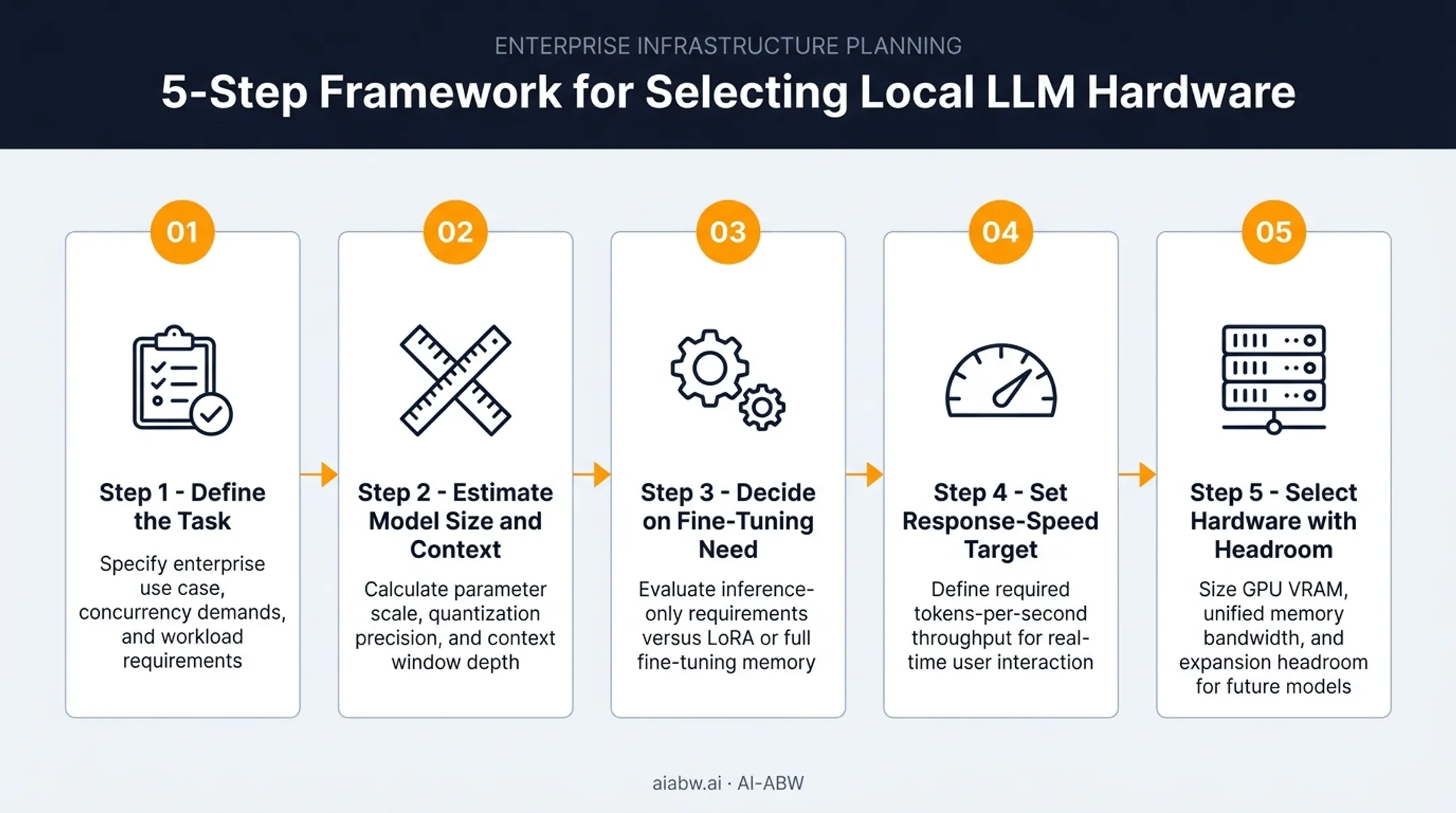

Buying framework:
- Define the task (chat, coding, document analysis, ERP querying)
- Estimate model size and context needs
- Decide if fine-tuning is required or just inference
- Set a realistic response-speed target
- Select hardware with memory headroom, not the bare minimum
Setups by profile:
- Personal assistant: consumer GPU or Apple Silicon laptop, 7B-13B models
- Developer workstation: 24GB+ VRAM card for coding models with longer context
- Document-analysis machine: heavier RAM allocation for embeddings and vector search
- Private ERP assistant: server-grade setup with read-only database access
- Multi-user business server: high-memory GPU or multi-GPU rig with concurrency headroom
Costs Beyond the Sticker Price
Electricity, cooling, hardware refresh cycles, software maintenance, backups, access controls, and staff time all add up. A TokenPowerBench study found that inference engines like vLLM cut energy per token by 25-40% over baseline transformers. Software choices shape running costs, not just the hardware bill.
Build vs. Privately Hosted Platform
Building local hardware from scratch means managing every layer yourself: drivers, model updates, security patches, and backups. For organizations that need controlled access and confidential data handling, a privately hosted business AI platform can remove that overhead.
AI-ABW is built for manufacturers, distributors, ERP users, and privacy-bound organizations. It runs on llama.cpp and Gemma 4, on customer-owned hardware or a dedicated private cloud instance (never shared public cloud).
Core operating terms:
- Company data never touches public AI systems
- No token or per-query fees
- Access via Open Web UI with individual accounts and role-based permissions
Final Decision Checklist
- Privacy and compliance obligations (HIPAA, trade secrets, contractual data terms)
- Expected user count and concurrency needs
- Uptime requirements
- Model update process and cadence
- Data retention policy
- Network isolation (on-premises, air-gapped, or private cloud)
- Internal technical capacity to maintain the system long-term
Frequently Asked Questions
Can you run any LLM locally?
Many open-weight models can run locally, but model size, format, memory availability, software compatibility, and licensing all determine whether a specific model is practical on your hardware. Check the model's documentation before you commit hardware to it.
Can you run an LLM locally without a GPU?
Yes, CPU-only inference works for smaller, heavily quantized models (typically under 8B parameters). Response speed and context length will be limited, and a GPU or unified-memory system becomes worthwhile once you need faster responses or larger models.
What hardware is required to run LLMs locally?
You'll need sufficient GPU VRAM or unified memory, adequate system RAM, a capable CPU, fast storage, proper cooling and power, and compatible software. The specific numbers depend entirely on your target model size and workload.
How much RAM and VRAM do I need to run a local LLM?
VRAM holds the model for GPU inference; system RAM supports CPU offloading and background processes. Quantization and context length both change the requirement, so leave headroom rather than matching the model file size exactly.
Can I run a local LLM on a Mac or Windows PC?
Yes, both work as long as the model runner and acceleration backend support your hardware. Apple's unified memory offers high capacity for large models, while Windows GPU setups often deliver higher raw bandwidth for faster interactive responses.
