Many teams underestimate that gap. A developer spins up Ollama in an afternoon, then gets asked to "make it enterprise-ready" — and suddenly needs DevOps, MLOps, and infrastructure specialists coordinating on CUDA drivers, VRAM budgets, and compliance controls.
Get it wrong and you'll see it fast: CUDA out-of-memory crashes, exposed API ports with zero authentication, inference so slow it's unusable, or a compliance gap that puts regulated data at risk.
This guide walks through planning, configuring, deploying, and validating local LLMs in secure enterprise environments — from hardware sizing to post-deployment checks.
Key Takeaways
- Local deployment gives you full data sovereignty, no third-party API exposure, and flat operational costs
- Quantization (INT4/INT8 GGUF or AWQ) is what makes large models fit in available VRAM
- The core workflow: environment setup, runtime selection, model acquisition, then serving configuration
- Validation means benchmarking latency and throughput, then confirming zero outbound traffic during inference
The Four Phases of Local Deployment
Every local LLM rollout, regardless of scale, breaks down into four phases:
- Infrastructure preparation: hardware, drivers, network isolation
- Runtime selection: choosing the inference engine that matches your use case
- Model serving configuration: quantization, parallelism, API setup
- End-to-end validation: latency, throughput, and security testing
Expect a straightforward single-GPU deployment to take a few days. Multi-GPU production serving with compliance requirements typically takes several weeks and requires IT and data teams to collaborate from day one.
Prerequisites and Security Considerations
Hardware Requirements
Before touching software, size your hardware correctly. You need:
- CUDA-capable NVIDIA GPU with enough VRAM for weights plus KV cache overhead
- System RAM at least 1.5x your model's footprint — context length and batching add pressure beyond the weights
- NVMe storage for fast model loading and checkpoint conversion

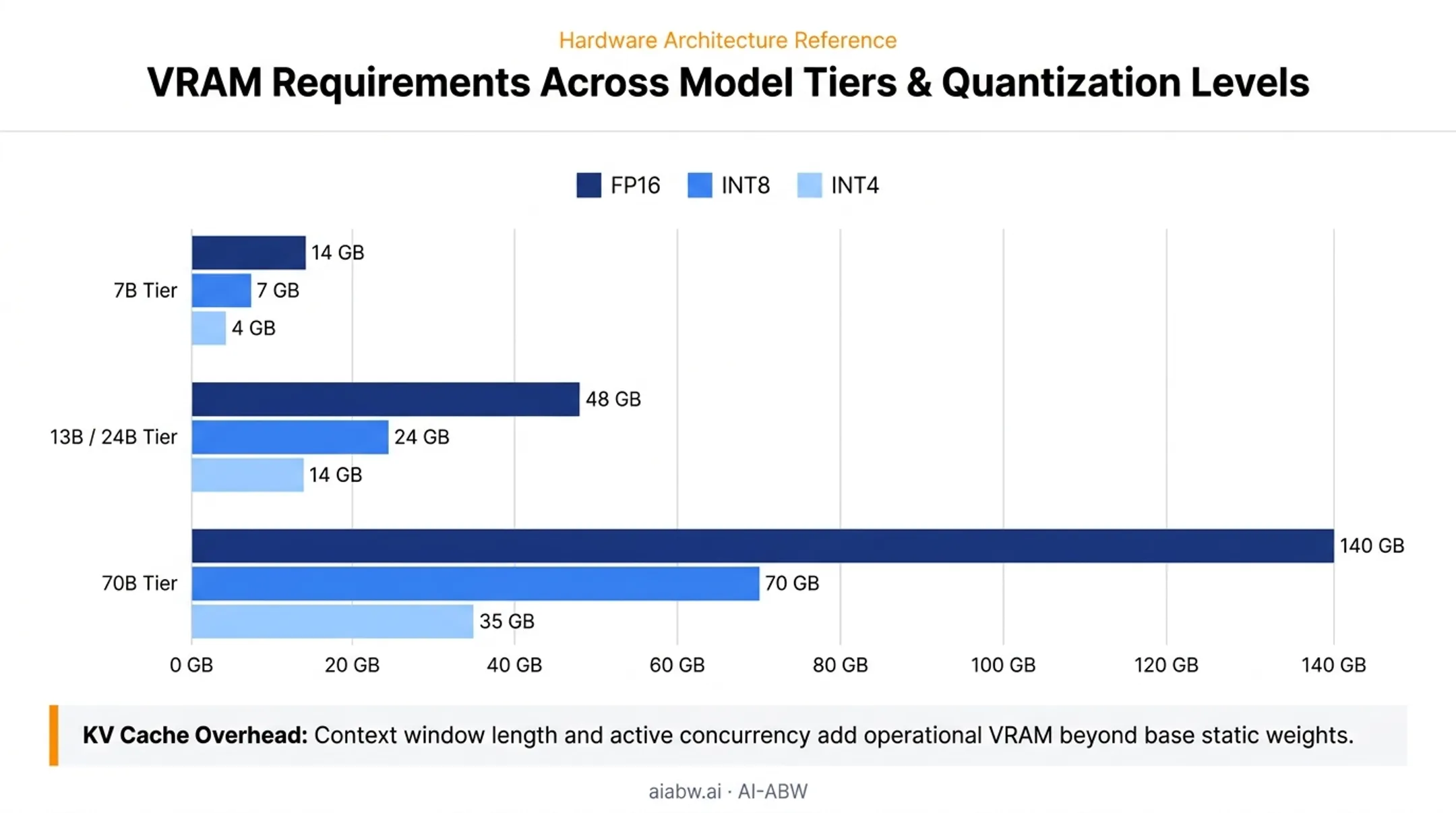

Official Llama 3.1 sizing gives a useful baseline: 8B parameters need roughly 16GB at FP16 or 4GB at INT4, while 70B needs roughly 140GB at FP16 or 35GB at INT4. These figures cover weights only — KV cache at 128K context alone adds 15.62GB for 8B and 39.06GB for 70B.
| Model Tier | FP16 Weights | INT8 Estimate | INT4 Weights | Practical Note |
|---|---|---|---|---|
| 7B | ~14 GB | ~7 GB | ~3.5 GB | Fits one modern GPU; reserve headroom for KV cache |
| 13B/24B | ~26-48 GB | ~13-24 GB | ~6.5-12 GB | Often needs a high-memory GPU or CPU/GPU offload |
| 70B | ~140 GB | ~70 GB | ~35 GB | Needs 35-40GB+ before runtime overhead; usually dual GPUs |
Hardware headroom only matters if the runtime stays isolated. Treat network controls as part of capacity planning, not an afterthought.
Network Isolation Non-Negotiables
For regulated or sensitive data, these controls are mandatory:
- Default-deny outbound firewall rules
- Zero outbound telemetry from the inference runtime
- Air-gapped operation where feasible
This matches AI-ABW's deployment model: the platform runs entirely on customer infrastructure with no outbound connections, external APIs, or cloud routing. Data never leaves the environment it is deployed in.
Compliance Requirements
Isolation alone is not enough for regulated workloads. Access control and logging have to match the data you hold.
HIPAA-bound organizations need unique user identities, role-based access, audit logging, and integrity controls. HHS does not mandate a fixed audit-log retention period; retention follows your own risk analysis.
GDPR-covered operations need purpose limitation, data minimization, and storage limitation designed into logging from day one.
Deployment Frameworks and Software Stack Required
Your runtime choice depends on your use case:
- Ollama and LM Studio: best for developer testing and single-user local setups, with simple local APIs
- llama.cpp: lightweight, CPU/edge-friendly, ideal for air-gapped appliances and GGUF models
- vLLM or Hugging Face TGI: built for multi-user production serving with continuous batching
Driver and Environment Dependencies
For GPU-accelerated deployments, confirm the following before installing a runtime:
- NVIDIA CUDA Toolkit and cuDNN versions match your GPU architecture
- Docker with NVIDIA Container Toolkit is available for containerized serving
- Python environment is isolated (venv or conda) to avoid dependency conflicts
CPU-only llama.cpp setups can skip the CUDA and NVIDIA Container Toolkit steps.
Optional Application Layer

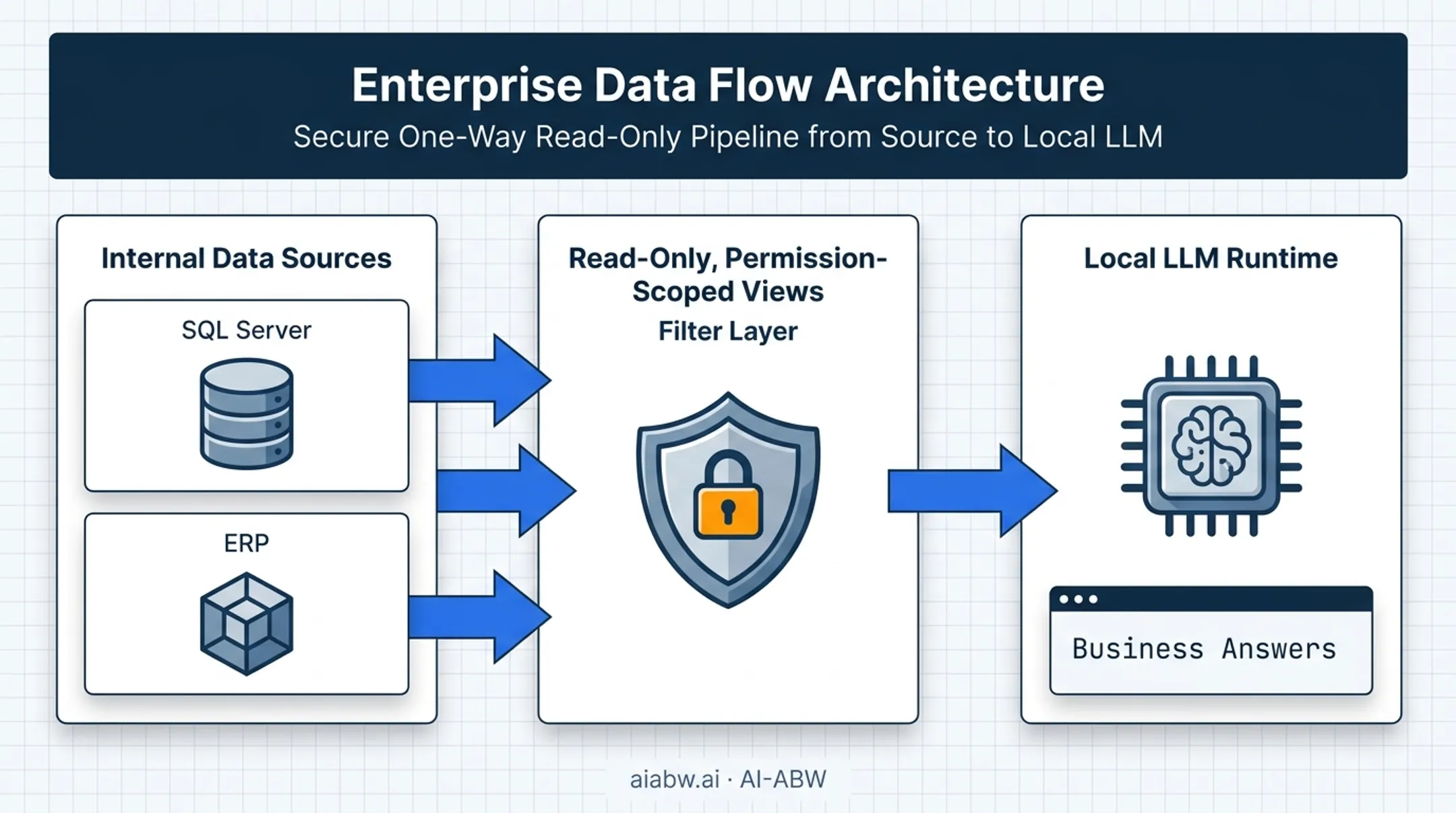

Many teams add LangChain, LlamaIndex, or internal database connectors for Retrieval-Augmented Generation (RAG).
That layer connects the model to internal SQL Server data or ERP records through read-only, permission-scoped views rather than raw database access, so the LLM supports real business questions instead of generic chat.

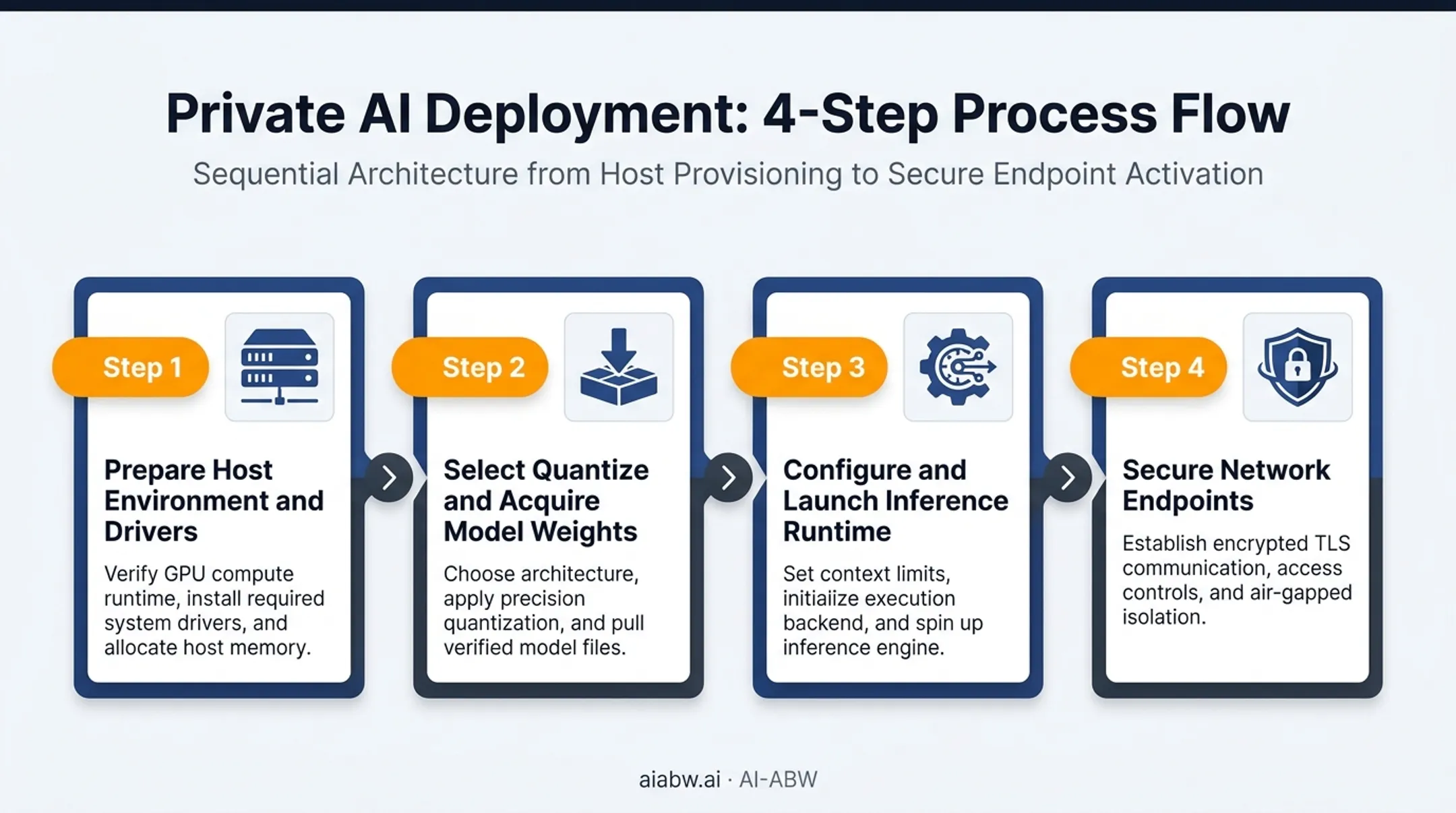

How to Deploy a Local LLM (Step-by-Step)
Follow these steps in order—skipping configuration details is how teams end up with memory leaks and unintentionally exposed ports.
Step 1: Prepare the Host Environment and Drivers
Install GPU drivers, then verify with nvidia-smi that CUDA tools recognize your hardware. Set up an isolated container environment (Docker with the NVIDIA Container Toolkit) so runtime dependencies don't clash with host packages.
Step 2: Select, Quantize, and Acquire Model Weights
Pull open-weight models (Llama 3, Mistral, Qwen) from verified repositories, and always check cryptographic checksums against the trusted release manifest before loading anything.
Apply quantization when your model doesn't fit available VRAM:
- GGUF: Works with llama.cpp—convert to high-precision GGUF first, then quantize down
- AWQ: Protects critical weights during quantization; often 3x+ faster than FP16 in benchmarks
- EXL2: Mixed-bit quantization; requires a compatible ExLlama stack
Step 3: Configure and Launch the Inference Runtime
Configure the runtime before you serve traffic:
- Batch size and max concurrent sequences
- Tensor parallelism across GPUs (if applicable)
- Context window limits
- An OpenAI-compatible API endpoint
vLLM's PagedAttention stores KV cache in fixed-size blocks instead of one large allocation, so it handles concurrent requests far better than naive serving setups.
Enterprises that prefer not to assemble this stack themselves can use a pre-configured private platform. AI-ABW bridges ERP and SQL Server data with a locally run LLM, without custom infrastructure development.
Step 4: Secure Network Endpoints and Application Bindings
Bind APIs to localhost or a private subnet only — never 0.0.0.0 on an open network. Layer in:
- A reverse proxy with TLS encryption
- Role-based API access controls
- Request logging for audit purposes

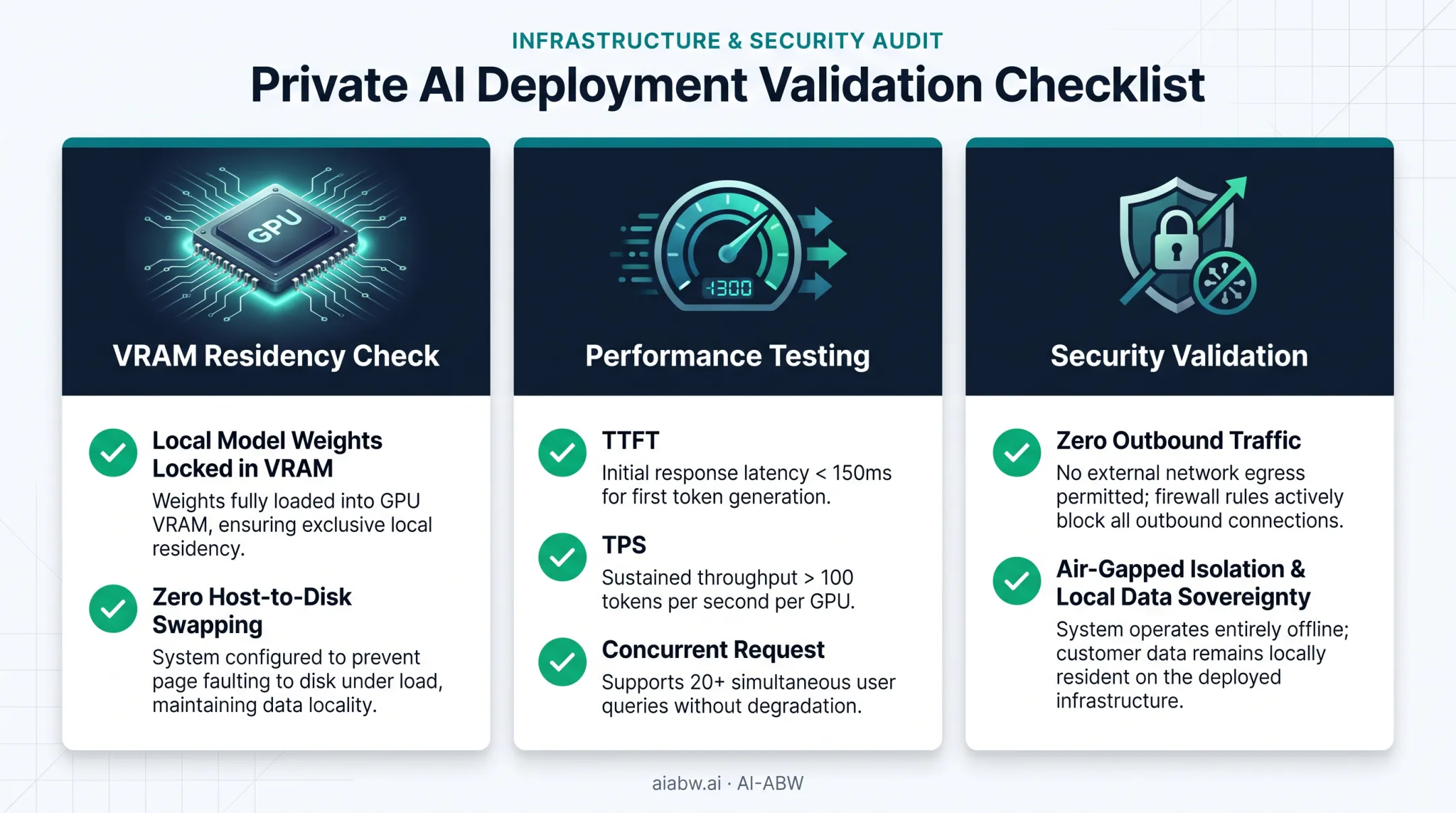

Post-Deployment Checks and Validation
Before marking a deployment complete, confirm the model loaded fully into GPU VRAM rather than spilling into slower system RAM. A model running partly on CPU offload feels dramatically slower, and it's easy to miss during initial testing. Use a tool like nvidia-smi to verify VRAM residency before you move on.
Then run functional and performance tests:
- Time-to-First-Token (TTFT) — time from request to the first streamed output
- Tokens per second (TPS) — decode speed under realistic load
- Concurrent request handling — how throughput holds up as users scale
Finally, run automated security checks confirming zero outbound packets leave the server during active inference. Teams skip this step most often, yet it matters most for compliance audits.
Common Deployment Problems and Fixes
Most failures trace back to VRAM miscalculation, GPU-layer offloading mistakes, or wide-open API configs. Here are the three you'll hit most often.
Issue 1: CUDA Out of Memory During Initialization or Large Prompts
Problem: The model fails to load, or crashes when processing long prompts.
Likely cause: VRAM wasn't sized for weights plus KV cache plus context length. Teams frequently size only for the model weights and forget the rest.
Fix: Apply 4-bit/8-bit quantization, shrink the max context window, or spread the load across a second GPU with tensor parallelism.
Issue 2: Severe Inference Degradation and High Latency
Problem: Token generation drops below 5 tokens per second during active sessions.
Likely cause: Model layers are spilling from VRAM into host RAM across a slower PCIe bus — partial offloading in disguise.
Fix: Reduce parameter size, adjust n_gpu_layers to keep more layers on GPU, or upgrade host memory bandwidth.
Issue 3: Unauthenticated API Exposure and Missing Role-Based Access Control
Problem: Internal staff can access unrestricted endpoints or unauthorized data sources.
Likely cause: Default runtime configs bind to 0.0.0.0 with no authentication or data scoping.
Fix: Deploy an internal API gateway with SSO authentication, restrict query permissions per role, and enforce row-level access control. AI-ABW, for example, connects through read-only database views and per-user profiles that define which knowledge bases each person can query, so access scoping is built in rather than added later.
Pro Tips for Deploying Local LLMs Effectively
- Use dynamic KV cache quantization and continuous batching to serve more concurrent users without doubling hardware spend
- Version your models and log prompts to catch response drift over staged regression tests
- Build isolated RAG pipelines with local vector databases (Qdrant, Chroma, pgvector) for real-time context without retraining
- Weigh build-versus-buy honestly. A self-built open-source stack gives full control, but your team owns every driver update, security patch, and scaling issue indefinitely
- Use a managed private platform like AI-ABW on customer-owned hardware or a dedicated private cloud when you need ERP integration and long-term support without that overhead
Conclusion
Local LLM deployment succeeds or fails on three things:
- Disciplined infrastructure planning
- The right quantization choices
- Security protocols that actually get tested, not just documented
Start with staged tests. Validate throughput under conditions that resemble your real workload, not a demo. Then scale the stack so data sovereignty stays intact from day one, before anything is exposed.
Frequently Asked Questions
Can I deploy and run a local LLM model without an internet connection?
Yes. Once runtime binaries and model weights are downloaded and stored locally, the system can operate fully air-gapped with no outbound connection required.
Can I deploy a local LLM model on my phone?
Yes, for lightweight models. Quantized 1B-3B parameter models run natively on modern iOS and Android devices through specialized runtimes built for on-device inference.
Can I train an LLM locally?
Full pretraining needs multi-GPU clusters. Meta trained Llama 3.1 405B on over 16,000 H100 GPUs. Parameter-efficient fine-tuning (LoRA/PEFT) can run on a single local workstation GPU.
What are the minimum GPU and VRAM requirements to run a 70B parameter model locally?
Roughly 35-40GB of VRAM at 4-bit quantization, which typically means dual consumer GPUs (like 2x RTX 4090) or a dedicated enterprise accelerator with headroom for KV cache.
How does model quantization affect local LLM inference speed and accuracy?
Converting 16-bit weights to 4-bit or 8-bit integers cuts memory bandwidth needs, which speeds up inference. Accuracy loss is typically small, though it should be measured per model, not assumed.
What is the primary difference between running Ollama and vLLM for local deployment?
Ollama prioritizes simplicity for single-user, developer-facing setups. vLLM uses PagedAttention and continuous batching to serve many concurrent users efficiently. It is built for production, not prototyping.
