That tension is why air-gapped AI keeps coming up in security and compliance conversations heading into 2026. But building one is bigger than dropping an open-weight model on a local server. Every dependency — package repos, embeddings, telemetry, certificates, updates — has to work without a live internet connection.
This article covers what air-gapped AI actually means, the architecture it demands, the security controls that matter, a realistic deployment roadmap, cost considerations, and how to tell if you actually need one.
Key Takeaways
- True air gaps require zero routine egress and local stand-ins for every cloud dependency
- Isolation stops network exfiltration, not prompt injection, insider misuse, poisoning, or hallucinations
- Pick deployment by data class, regulation, use case, infrastructure, and offline tolerance
- Private AI often beats a full air gap when you need data control, not total disconnection
What Is Air-Gapped AI and Why Does It Matter in 2026?
NIST defines an air gap as an interface where two systems have no physical connection and no automated logical link: data moves manually, under human control (NIST CSRC). Applied to AI, that means no routine inbound or outbound traffic to public networks. Controlled one-way transfers or approved physical-media processes can still exist.
Air-Gapped AI vs. Private, On-Premise, BYOC, and Isolated AI
These terms get used interchangeably. They shouldn't be.
- Private cloud — infrastructure for one organization; may still be internet-connected (NIST SP 800-145)
- On-premise — hardware in your building that can still call out to the internet
- BYOC (bring your own cloud) — has no standardized federal definition and doesn't guarantee isolation
- Egress-allowlisted networks — restrict some traffic, not all of it
Words like "secure," "sovereign," and "isolated" get marketed loosely. None of them automatically mean zero egress. Verify the actual network architecture before assuming isolation.
Why Organizations Are Considering Air-Gapped LLMs in 2026
Common drivers include:
- Classified or highly confidential government and defense data
- Regulated healthcare records
- Attorney-client privileged material
- Proprietary manufacturing workflows and ERP data
- Controlled operational technology environments
Deloitte's 2025 infrastructure survey found 64% of organizations had already started limited or at-scale AI-factory deployments, with 86% expecting AI infrastructure budgets to more than triple over the next three years (Deloitte 2025 survey). As spend scales, data custody and model supply-chain risk move to the center of architecture decisions—including when a true air gap is required.

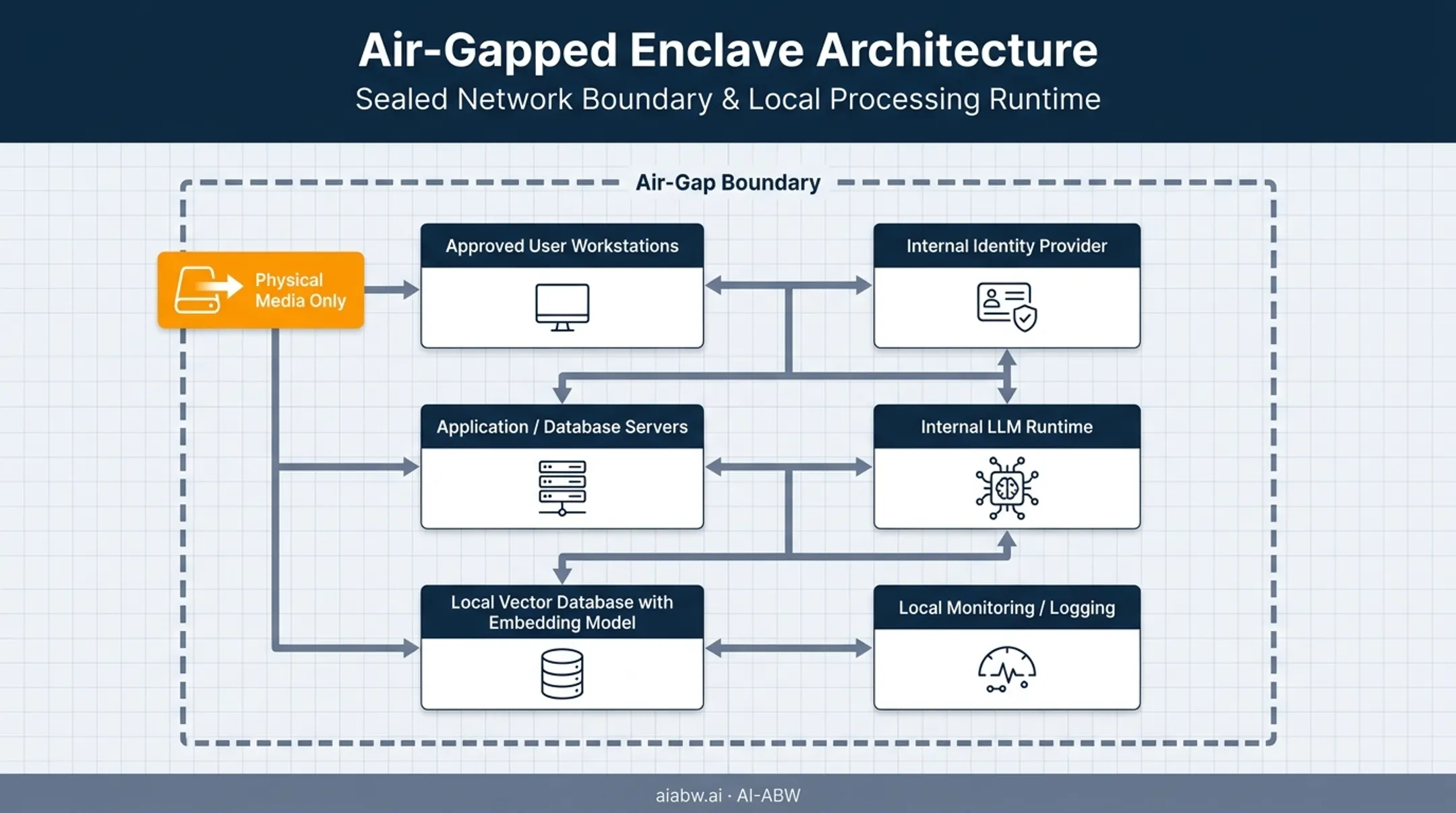

Example of an Air-Gapped AI Network
Picture a sealed enclave containing:
- Approved user workstations
- An internal identity provider
- Local application and database servers
- An internal LLM runtime
- Local retrieval infrastructure (vector database + embedding model)
- Local monitoring and logging
Updates, patches, and approved data enter through signed, inspected physical media, not routine internet access. Platforms such as AI-ABW follow this pattern in on-premises and private-cloud deployments: prompts, business data, and processing stay inside customer infrastructure, with no outbound API calls or external logging.
What an Air Gap Does Not Solve
Isolation reduces network exfiltration risk. It does not stop:
- Unauthorized insiders with excessive access
- Overly broad database permissions
- Poisoned model artifacts or malicious documents
- Prompt injection attacks
- Insecure output handling
- Simply wrong, hallucinated answers
CISA notes that data security and integrity affect AI outcome accuracy across the entire lifecycle (CISA). The network boundary is one control, not the whole program.
What an Air-Gapped LLM Architecture Must Include
Everything an internet-connected AI stack normally pulls from outside the network must be pre-staged, mirrored, or self-hosted before the air gap closes.
Local Model Serving and Hardware Planning
Self-hosted inference needs approved hardware and locally stored weights. Key planning factors:
- Model size and quantization: Hugging Face docs show 8-bit and 4-bit methods (including AWQ/GPTQ) cut memory use so larger models fit smaller hardware
- Memory pressure: weights and the KV-cache dominate consumption, per NVIDIA's inference guidance
- Latency, throughput, redundancy, power, and cooling sized to real workloads—not peak theoretical capacity
Match the model to the job. Classification and document extraction need less horsepower than open-ended reasoning or complex RAG.
Local Retrieval, Embeddings, and Internal Business Systems
RAG needs both the vector database and the embedding model running inside the enclave. A remote embedding API breaks the isolation, even if the LLM itself is local.
Internal systems connect through local APIs or controlled connectors:
- ERP data, document stores, and file shares stay behind role-based access
- Each employee's retrieval scope is limited to what their role permits
AI-ABW uses read-only database views and per-user knowledgebase profiles so the model can answer questions without reaching data outside each role's lane.
Offline Artifact and Dependency Supply Chain
Before deployment, you need:
- Signed model bundles with cryptographic hashes
- Model cards, license records, tokenizers, adapters, safety models
- Container images and OS packages
- Python/JavaScript dependencies
- An AI/ML bill of materials
CISA's 2026 AI-SBOM guidance recommends minimum elements that improve transparency across AI systems and supply chains. Local container registries and package mirrors must be fully populated. Production should never silently fall back to Docker Hub, Hugging Face, or PyPI.
Identity, Certificates, Observability, and Platform Services
Cloud dependencies that need internal replacements:
- Identity and access management for every user and service account
- Internal DNS and NTP so name resolution and clocks never leave the enclave
- An internal certificate authority for TLS and service identity
- Secrets management for keys, tokens, and credentials
- Audit logging, monitoring, and alerting retained on-premises
- Backup and disaster recovery that stays inside the same boundary
Telemetry and logs often contain sensitive data themselves — prompts, retrieved documents, error traces. Keep them inside the same classification boundary as the data they describe.
Tools, Agents, and Offline Functionality
Agents relying on web search, SaaS tools, or external license checks either get removed or rebuilt as internal tools with safe degradation.
A chat UI only answers questions; a production agent takes actions. Agents need:
- Approval gates before side effects
- Tool allowlists
- Sandboxing
- Transaction-level authorization

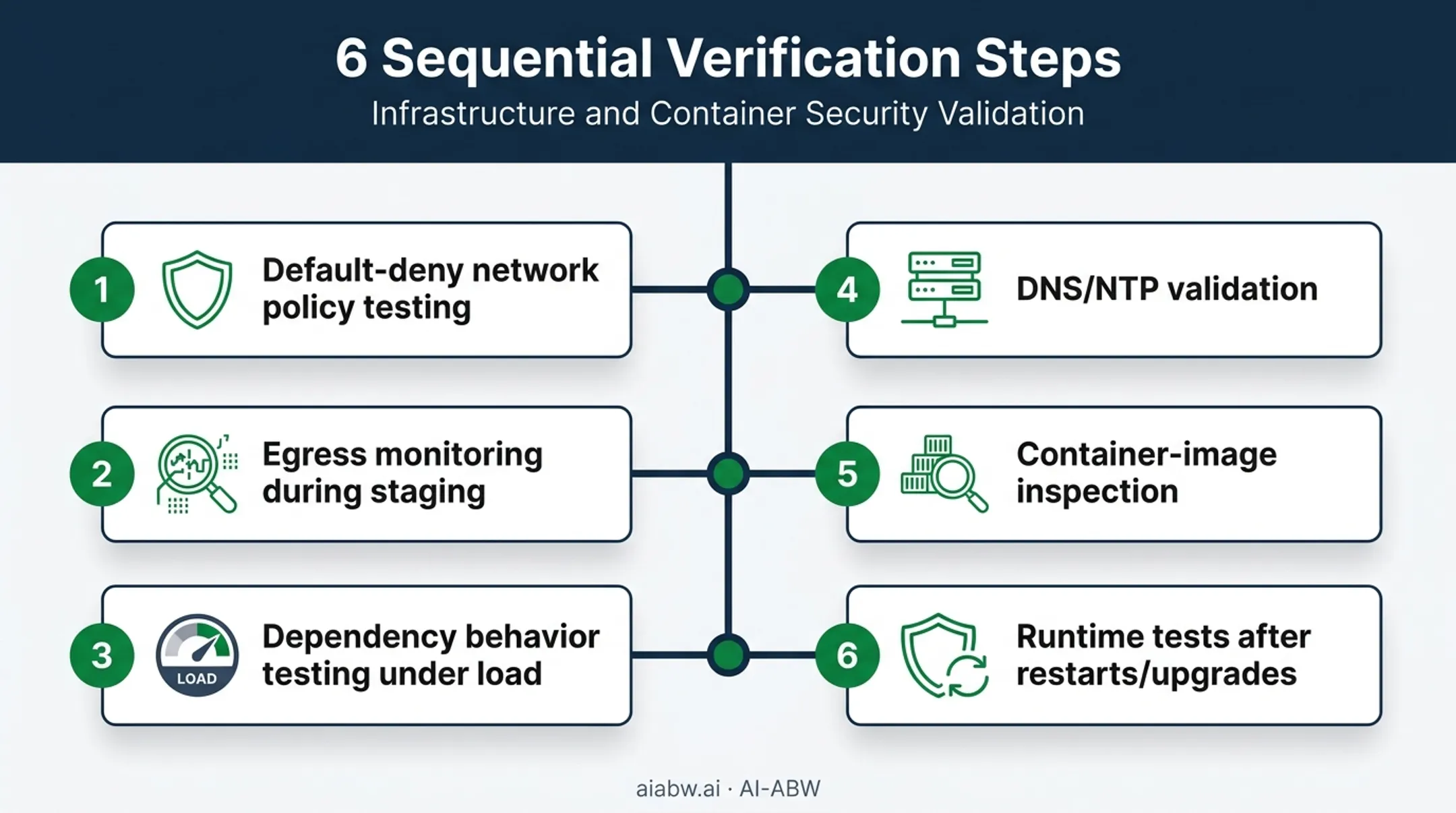

Proving the System Is Truly Air-Gapped
Before go-live, verify with:
- Default-deny network policy testing
- Egress monitoring during staging
- Dependency behavior testing under load
- DNS and NTP validation
- Container-image inspection
- Runtime tests after restarts and upgrades
Probe specifically for hidden SDK telemetry, automatic model downloads, public certificate renewals, and external license checks. Those paths stay quiet until you test under real load and failure conditions.
Security, Governance, and Model Lifecycle Controls
The network boundary is one control in a defense-in-depth program covering people, models, data, and operations.
Threat Modeling and Data Classification
Start with a data-flow exercise: what enters prompts, retrieval indexes, training sets, logs, backups, and update media? Then map isolation requirements to actual obligations.
- HIPAA: does not mandate air-gapping; HHS allows cloud ePHI when reasonable safeguards protect confidentiality and integrity (HHS)
- ITAR: encrypted technical data on US-based servers, administered only by US persons, may not constitute an export under DDTC FAQ conditions (DDTC)
- Attorney-client privilege: ABA Formal Opinion 512 requires lawyers to vet AI vendors on security, confidentiality, and conflicts procedures (ABA)
None of these regulations require an air gap. They require appropriate safeguards. An air gap is one way to satisfy them, not the only way.
Access Control for Prompts, Retrieval, and Database Queries
An LLM should never become a universal database administrator. Controls that limit blast radius:
- Apply least privilege and role-based access to every model connector
- Enforce row- and field-level database permissions
- Separate authorization to read data from authorization to take action
- Validate queries and require human approval for sensitive actions
- Keep full audit trails for prompts, retrieval, and tool use
Model Provenance, Evaluation, and Supply-Chain Integrity
Before a model enters production, verify origin, signatures, hashes, licenses, and training-data disclosures where available. NIST AI 600-1 recommends retaining evaluation history and recording provenance details like sources, signatures, and versioning (NIST).
Run offline evaluations using:
- Representative internal tasks
- Adversarial prompts
- Sensitive-data leakage tests
- Retrieval accuracy checks with human-reviewed ground truth
Prompt, Output, and Application Security
Local deployment does not make untrusted documents safe. OWASP's LLM Top 10 flags prompt injection as user input that alters model behavior in unintended ways, and recommends explicit system instructions plus separation of untrusted content (OWASP).
Improper output handling (passing model output to downstream systems without validation) is a separate, equally real risk (OWASP).
Guardrails, output validation, and human review remain necessary regardless of network isolation.
Governance for Updates, Incidents, and Physical Media
A controlled release process needs:
- Approval workflows for weights, containers, and configs
- Signature verification and scanning
- Staging before production
- Rollback capability and chain-of-custody records
Incident response should cover both cybersecurity events and model failures: containment, disabling a connector, preserving local evidence, and restoring from approved backups.

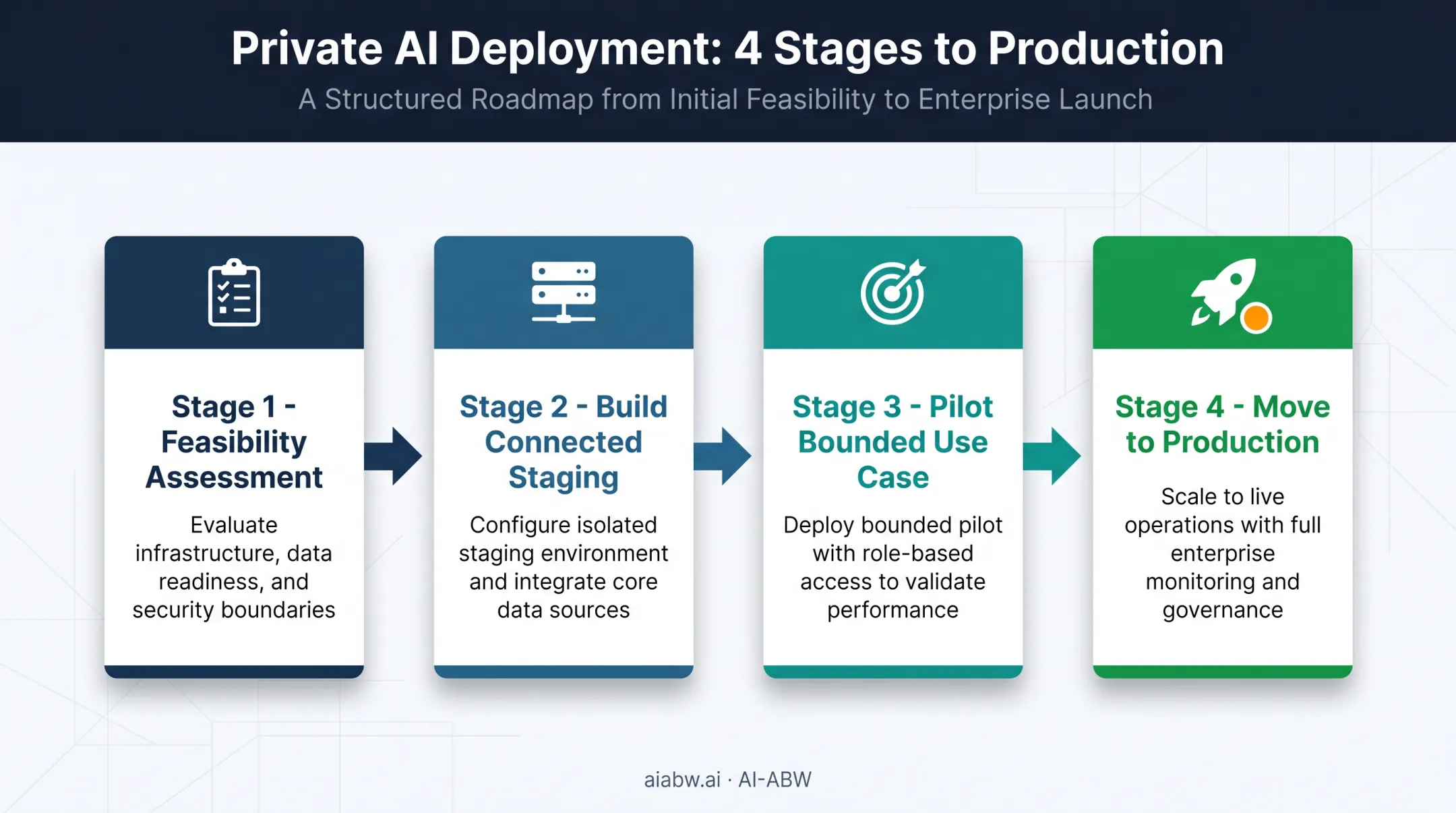

Deployment Roadmap: From Feasibility to Production
Air-gapped LLM programs rarely fail on model choice alone. They fail at cutover. Treat isolation as a staged path so real data stays offline until the stack is proven.
- Feasibility assessment: Classify data, map integrations, confirm hardware and offline dependencies, and define staffing plus the regulatory review path.
- Build connected staging: Mirror the intended enclave, inventory every network call, pre-stage artifacts, and fix failures before real data enters.
- Pilot one bounded use case: Start with an internal documentation assistant, ERP onboarding tool, or read-only database analysis. Measure answer quality, latency, adoption, and security findings.
- Move to production: Proceed only after threat modeling, access reviews, offline update rehearsals, disaster-recovery tests, and written ownership across IT, security, and business teams.
AI-ABW deployments follow the same arc:
- Discovery call to assess environment and data structure
- Infrastructure review of hardware and network configuration
- Controlled data access through read-only views
- Hands-on testing before go-live
Is Air-Gapped AI the Right Choice for Your Organization?
Air-gapped AI fits organizations that cannot risk data leaving a controlled boundary. Strong candidates include:
- Privacy-bound firms and regulated enterprises
- Law practices protecting client privilege
- Healthcare data owners under HIPAA constraints
- Manufacturers with proprietary ERP data
- Teams that need controlled natural-language access to internal databases A full air gap isn't always necessary. Private hosted, on-premises-connected, or BYOC deployments can offer enough protection with far less hardware, staffing, and maintenance burden, especially when the real requirement is data control rather than total network disconnection.
Total Cost of Ownership
TCO extends well past model licensing:
- GPUs or approved hardware
- Storage and networking
- Power and cooling
- Local registries and security tooling
- Internal PKI and secrets management
- Backup and model-transfer processes

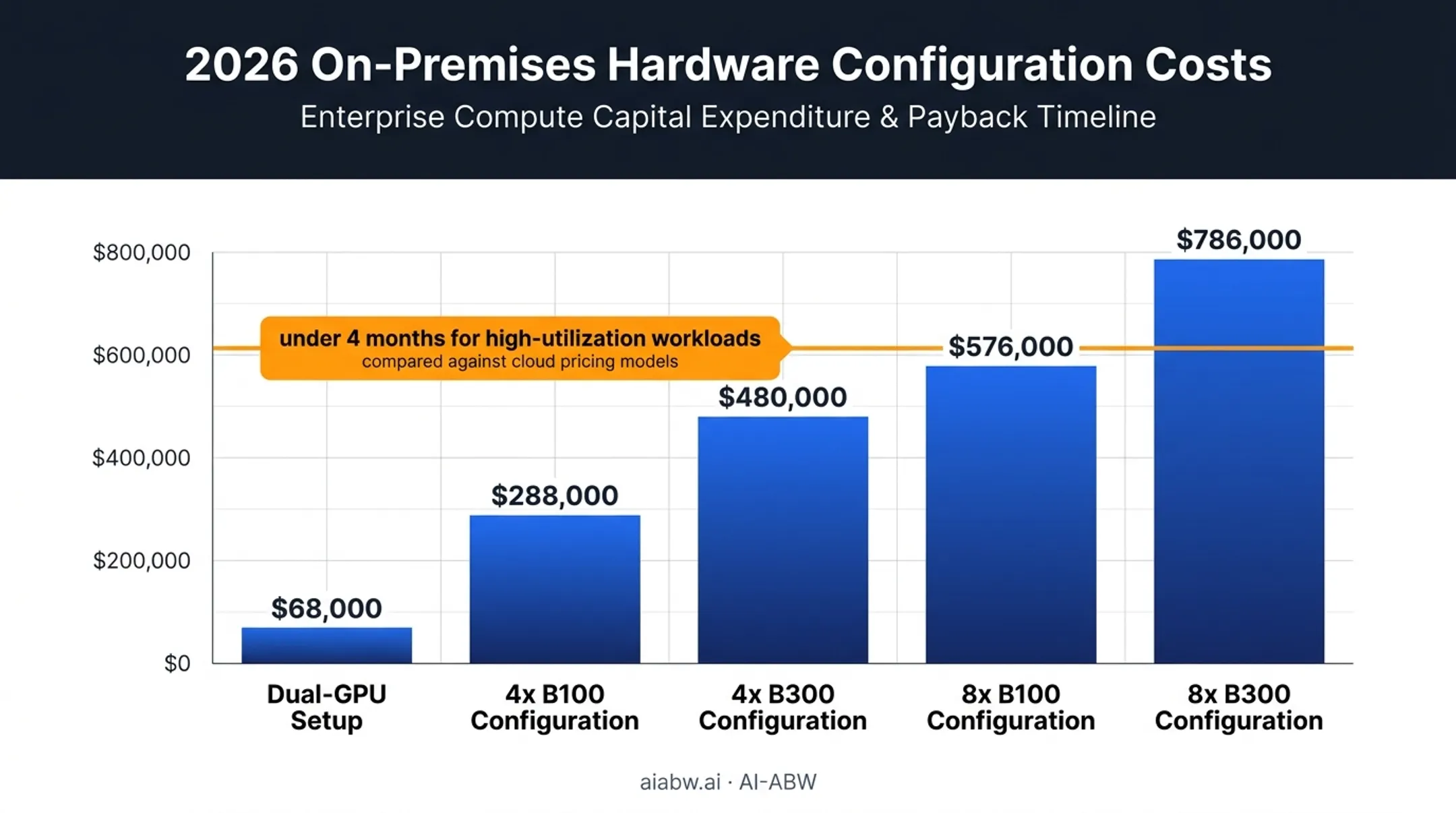

- Staffing, testing, and compliance review One vendor whitepaper reports 2026 on-premises hardware configurations ranging from $68,010.96 for a dual-GPU setup to $785,606.50 for an 8x B300 configuration (Lenovo, 2026). It models breakeven under four months for high-utilization workloads versus cloud model-as-a-service pricing. These are vendor-modeled figures, not independent benchmarks, so treat them as directional rather than universal. AI-ABW takes a different approach: a flat, fixed-environment license with no per-query or token fees. The cost is the same whether your team asks ten questions a day or ten thousand.
AI-ABW as a Private Business AI Option
AI-ABW is Info-Power International's private business AI platform, built on more than 30 years of enterprise software work since 1992. It runs on Gemma 4 and llama.cpp, self-hosted on customer infrastructure: on-premises, in a private cloud, or air-gapped for remote sites like oil rigs and ships. Practical fits include:
- Internal ERP documentation assistants
- SOP and knowledge search for customer service teams
- Read-only, natural-language querying of SQL Server and ERP data
- Role-based access so each department sees only what it's authorized to see Confirm with your team that the network, compliance, and air-gap controls you need are actually supported. Private AI and a full air gap are related controls, not the same deployment. The decision rule: choose the least complex deployment that actually satisfies your documented risk, confidentiality, regulatory, and operational requirements. Don't build an air gap because it sounds more secure. Build one because your data classification and threat model require it.
Frequently Asked Questions
What is air gapping in AI?
Air-gapped AI runs without routine inbound or outbound access to public or untrusted networks. It differs from on-premises or private cloud deployment, which can still maintain internet connectivity even while keeping data on dedicated infrastructure.
Can you give me an example of an air-gapped network?
An internal enclave with local users, identity services, model inference, data stores, embeddings, and monitoring, all disconnected from public networks. Updates and approved data transfers move through a controlled offline process, like inspected physical media.
Is LLM overfitting a real risk?
Yes. Fine-tuning can cause a model to perform well on training data but poorly on new inputs it hasn't seen (Google ML). Offline validation against representative business tasks helps catch this before production.
What is LLM collapse?
Model collapse is a progressive loss of quality and diversity when models are repeatedly trained on degraded or synthetic model-generated data (Nature, 2024). That is why data-source governance and update cadence matter in offline environments.
How much does AI actually cost to run?
Cost depends on model size, hardware utilization, power, storage, staffing, security tooling, and update frequency, not just licensing fees. Evaluate total cost of ownership, not just the sticker price of the model or API.
