That's because large language models generate responses from patterns learned during training, not from your actual documents. They don't know your latest pricing sheet, your updated SOPs, or the specific way your ERP system tracks inventory. Many businesses discover this the hard way — after deploying a chatbot that hallucinates policy details.
Retrieval-Augmented Generation (RAG) solves this by retrieving relevant information from your own sources before the model generates an answer, grounding the response in facts rather than guesses.
This article covers how RAG works end-to-end, the major architecture types, real business applications, and how to choose the right approach for your organization.
Key Takeaways
- Connects an LLM to external, current, domain-specific knowledge instead of relying only on training data
- Runs a four-stage pipeline: prepare data, index it, retrieve relevant content, then generate a grounded response
- Cuts unsupported answers without retraining the model, though quality still hinges on source data and retrieval accuracy
- Choose architecture based on your data shape, query complexity, and governance requirements
What Is RAG Architecture?
RAG stands for Retrieval-Augmented Generation. It pairs an information retrieval layer with a generative language model. The National Institute of Standards and Technology defines it as pairing a model with a separate retrieval system or knowledge base — the model doesn't just generate from memory, it generates from supplied evidence.
A standalone LLM versus a RAG application:
- A standalone LLM answers using only what it learned during training — frozen at a point in time
- A RAG application retrieves fresh, relevant context at query time and feeds it into the prompt
- The LLM in a RAG system still generates the language, but it's now working from evidence instead of memory alone
This matters because standalone LLMs hit predictable limits:
- Outdated training knowledge
- No access to proprietary company information
- Generic answers that ignore your actual policies
- Hallucinations when the model has no reliable source
What Counts as a Knowledge Base
A RAG knowledge base is the approved collection of content the system searches — manuals, policy documents, database records, ERP data, APIs, or other sources. It's not automatically "everything you have." Someone decides what goes in.
Important caveat: RAG is not a guarantee of truth, and wiring up a knowledge base does not automatically protect sensitive data. Answer quality still depends on:
- Source document quality and freshness
- Retrieval relevance (did it find the right passages?)
- Authorization enforcement (can this user see this data?)
- Ongoing maintenance as content changes
RAG vs. Fine-Tuning vs. Prompt Engineering
These three approaches solve different problems:
- Prompt engineering changes instructions given to the model at query time
- Fine-tuning changes model behavior using training examples baked into the model
- RAG supplies changing external knowledge at query time, without altering the model itself
They are not mutually exclusive. A plant or back-office app that needs domain-specific behavior and current, permission-controlled ERP or policy data often combines all three.
The rest of this guide breaks down how the retrieval and generation pieces fit together, and what has to be true for answers to stay accurate and access-controlled.
How Does RAG Architecture Work?
The full flow runs from source data through ingestion, indexing, retrieval, generation, and evaluation. Each stage below shapes how accurate and usable the final answer is.
Data Ingestion and Indexing
Documents and structured sources get collected, cleaned, deduplicated, and classified. Then they're divided into chunks small enough to retrieve precisely, while preserving metadata like source, date, department, or access role.
Each chunk gets converted into an embedding: a numerical representation of its meaning that supports semantic matching. AWS notes that source material must be converted into these manageable chunks before indexing.
Vector search isn't the only option. Keyword indexes, hybrid search, graph databases, SQL queries, and APIs can work instead of — or alongside — embeddings, depending on the data.
Query Processing and Retrieval
A user's question often gets rewritten, classified, and filtered by permissions before it's converted into a searchable form. The system then retrieves candidate passages or records using:
- Similarity search: matching by semantic meaning
- Keyword search: matching by exact terms
- Hybrid retrieval: combining both
- Metadata filtering: restricting by department, date, or role
- Reranking: reordering results by relevance
Microsoft documents keyword, semantic, vector, and hybrid search as available options, sometimes paired with semantic ranking. Retrieving a small set of highly relevant sources usually beats dumping every possible document into the model. More context is not always better context.
Generation and Quality Control
The application combines the user's question with retrieved context into an augmented prompt, instructs the LLM to use that evidence, and returns an answer with citations where appropriate.
Simplified flow:
OFFLINE (indexing):
Source Data → Clean/Chunk → Embed → Index
REAL-TIME (question-answering):
User Query → Retrieve → Augment Prompt → Generate → Return with Citations
Teams should track retrieval relevance, groundedness, latency, and access failures. Refresh indexes when source content changes, and test representative questions before going live.

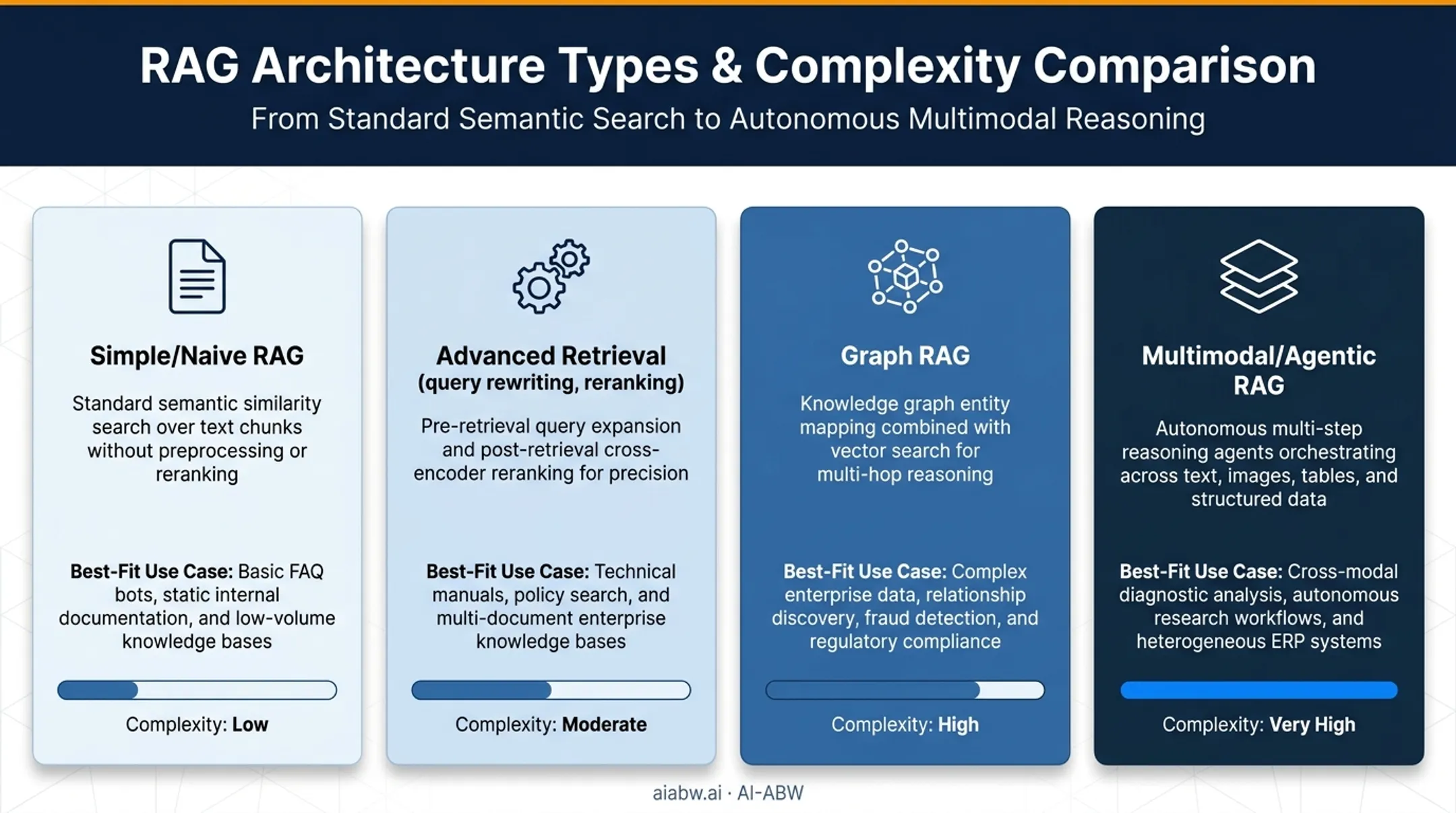

What Are the Different Types of RAG Architecture?
There's no single fixed taxonomy. These labels describe different retrieval, reasoning, memory, or quality-control strategies, and they're often combined.
Simple or Naive RAG
The basic pattern: retrieve, then generate. One query in, relevant passages out, answer generated. This works well for narrow FAQ systems and straightforward document questions, but struggles with ambiguous or multi-step queries.
Conversational, Memory-Enabled, and Adaptive RAG
Memory-enabled systems use prior conversation turns as context. Adaptive systems vary retrieval depth based on the query. Not every question needs the same amount of digging.
Research on adaptive retrieval for conversational systems found that retrieving on every single turn can actually cause problematic responses. Careful retention policies and authorization controls matter here, since conversation memory carries privacy and stale-context risks.
Advanced Retrieval and Verification Patterns
Several techniques improve relevance or check whether retrieved evidence actually supports the answer:
- Query rewriting: reformulates vague questions
- Hybrid retrieval: combines keyword and semantic search
- Reranking: reorders candidates for relevance
- Corrective RAG (CRAG): evaluates document quality and triggers corrective retrieval when needed
- Self-RAG: critiques its own retrieved passages and generations using reflection tokens
These add processing steps, maintenance, latency, and cost — worth it for difficult queries, overkill for simple ones.
Specialized Architectures
- Graph RAG: structures relationships between entities for relationship-heavy questions, rather than plain semantic search
- Multimodal RAG: retrieves across images, charts, audio, or video, not just text
- Agentic or branched RAG: plans and executes multi-step research across tools and sources
Choose based on data format, relationship complexity, number of sources, and your tolerance for implementation complexity. More sophistication means more to maintain.
Benefits and Business Use Cases
RAG delivers four practical gains for business teams:
- More current answers without full model retraining
- Domain-specific responses grounded in your own documents and data
- Source traceability so users can verify where an answer came from
- Lower cost of keeping knowledge up to date over time
Practical applications include:
- ERP onboarding assistants trained on your exact documentation
- Internal policy and SOP search
- Customer and employee support grounded in real manuals
- Technical-manual lookup for equipment or products
- Controlled database questions over sales, inventory, or production data
- Document analysis for manufacturers and distributors
Governance matters as much as intelligence. Retrieving only approved, role-appropriate context is a security feature, but authorization must be enforced at the retrieval and source-system layers—not left to the LLM.
AI-ABW is built for that model. It is a private business AI platform for manufacturers, distributors, and ERP users who need practical intelligence over their own operational data without sending it to public AI systems.
AI-ABW connects through read-only database views, and each user profile defines which knowledge sources they can access. The AI engine, data connections, and access controls run on the organization's own infrastructure rather than a public cloud.
Design Considerations, Risks, and Selection Guidance
Key Trade-Offs
- Retrieval quality versus latency
- Richer context versus context overload
- Freshness versus indexing effort
- Flexibility versus operational simplicity
- Stronger controls versus implementation complexity

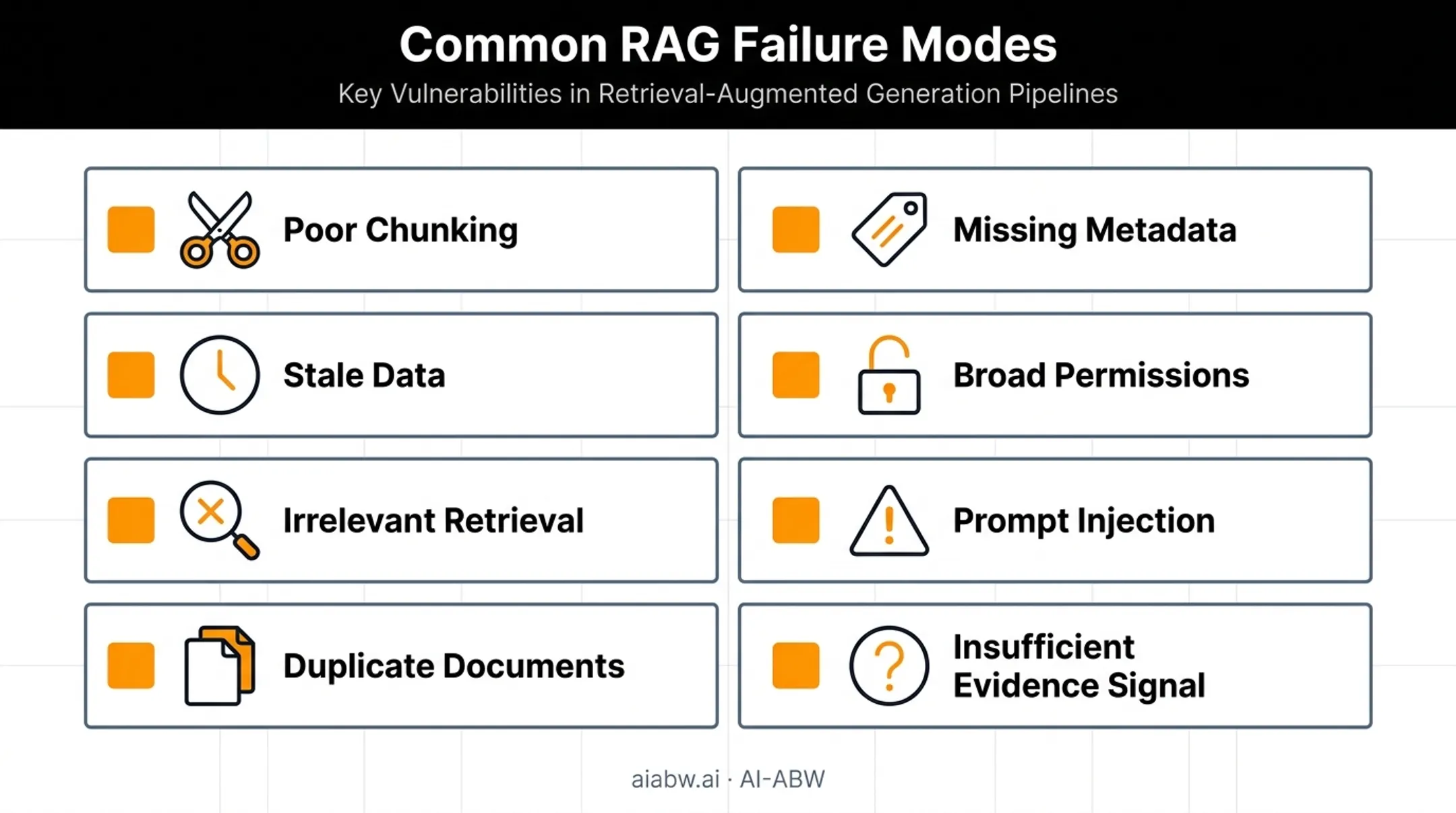

Common Failure Modes
Watch for:
- Poor chunking that splits ideas mid-thought
- Stale or incomplete source data
- Irrelevant retrieval results
- Duplicated documents confusing the index
- Missing metadata that breaks permission filters
- Overly broad access permissions
- Prompt injection hidden in retrieved content
- No signal when evidence is insufficient
OWASP's LLM Top 10 flags risks from poisoned or untrusted data entering the generation path. In RAG systems, that often means malicious content planted in a knowledge base or retrieval steered toward attacker-controlled sources: a real risk when source validation is weak.
Selection Checklist
Before choosing an architecture, map out:
- Data types (text, structured, images, mixed)
- Update frequency requirements
- Query complexity your users actually have
- User roles and permission structures
- Compliance or confidentiality requirements
- Expected response speed
- Citation and traceability needs
- Integration points with existing systems
- Available resources for ongoing evaluation
Implementation Recommendation
Start narrow. Pick one measurable use case, establish an approved knowledge base with a real access policy, and test retrieval quality separately from answer quality.
Add reranking, memory, agents, graphs, or multimodal inputs only once the use case demonstrates it actually needs them.
Frequently Asked Questions
What is RAG architecture?
RAG architecture is a system that retrieves relevant external information and passes it to an LLM to generate a more grounded response. It lets applications use current or private data without retraining the underlying model.
Are public AI chat products RAG systems?
Most are products built around a language model, and some of their features — web search, file uploads — do use retrieval. That is different from the base model itself, which generates purely from learned parameters. RAG describes the retrieval layer, not the model underneath it.
What is the difference between RAG architecture and an LLM?
An LLM generates language from parameters learned during training. RAG is an application architecture layered on top that adds retrieval, external data, prompt augmentation, and often access controls.
What is a knowledge base in RAG?
A knowledge base is the approved collection of documents, records, manuals, policies, or APIs that the retrieval layer searches to supply relevant context for a given query.
What are the different types of RAG architectures?
Common patterns include simple, conversational, hybrid, corrective, graph, multimodal, and agentic RAG. These aren't mutually exclusive. Organizations often combine patterns based on their specific use case.
How do you choose a RAG architecture?
There's no universal best answer. Match the design to your data format, query complexity, freshness needs, permission requirements, latency tolerance, and maintenance capacity.
